WP-BOLL-4-Full Automatic Golf Ball Pad Printing Machine

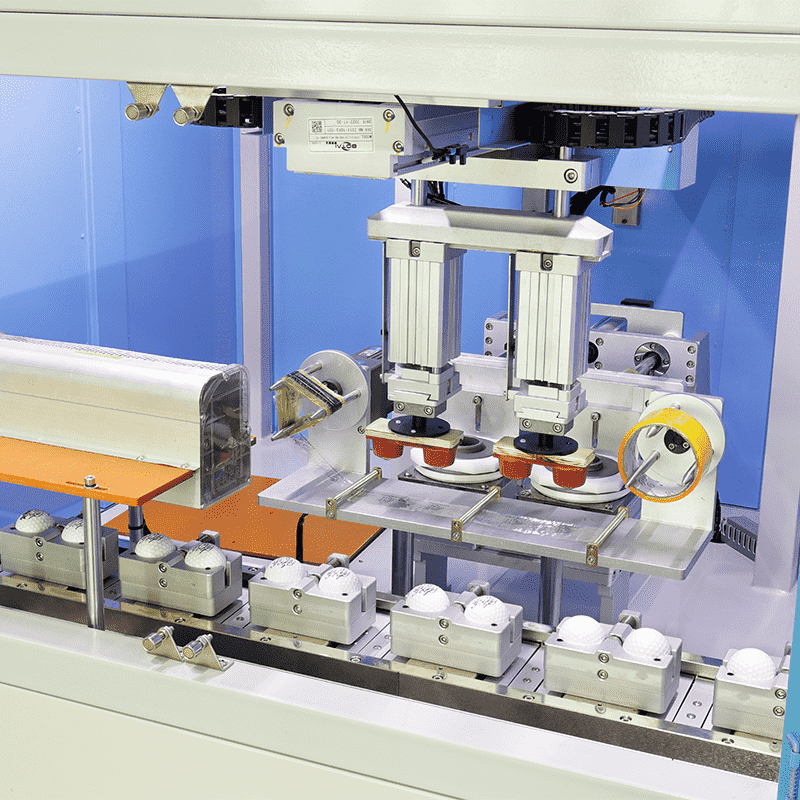

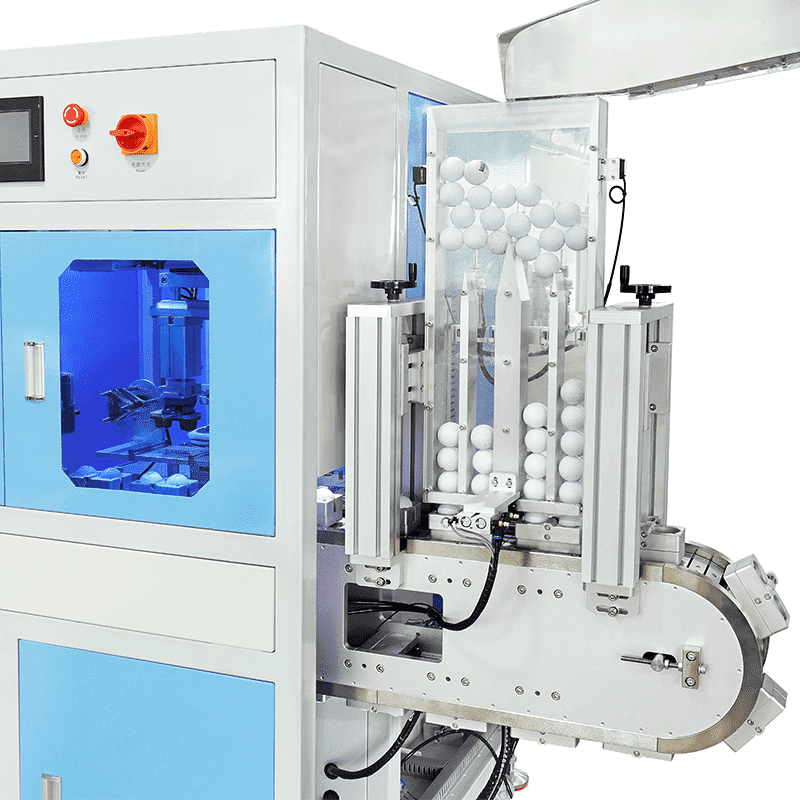

Features of this machine: 1. Control and setting: PLC plus touch screen control is adopted, and the function parameters are flexibly set 2. Loading and unloading system: Automatic loading and unloading system is adopted, which is fast and accurate 3. Dust removal method: The dust removal system adopts SP ion wind rod to treat the surface of the workpiece 4. Conveying device: The robot automatically conveys the workbench, which runs smoothly and has precise positioning 5. Paste head adjustment: Independent rubber head up and down stroke and speed adjustment 6. Inking system: The sealed oil cup inking system is adopted to save ink, clean and environmentally friendly 7. Printing function: It can print different colors and patterns to meet diverse market needs 8. Component configuration: Precision pneumatic components and solenoid valves are used

Features of this machine: 1. Control system: PLC control system and touch screen control are adopted, with flexible settings and easy operation 2. Feeding method: Automatic lifting feeder and manipulator loading, fast and accurate, reducing manpower 3. Auxiliary device: Equipped with ion wind bar dust removal device and manipulator pressing device, convenient and fast 4. Workbench features: Multi-station turntable workbench, precision divider drive, stable operation, precise positioning 5. Inking related: Inking method can choose sealed oil cup or open ink tray, equipped with automatic glue cleaning device 6. Unloading method: Automatic unloading by manipulator to ensure continuous and stable printing and improve automation 7. Component guarantee: Precision pneumatic components and solenoid valves are used

Features of this machine: 1. Control system: PLC plus touch screen control, flexible setting of function parameters, convenient to debug and manage 2. Loading and unloading system: Automatic lifting loading and unloading system, fast and accurate, improving automation 3. Conveying workbench: tank belt conveying workbench, precision divider drive, stable operation and precise positioning 4. Rubber head setting: independent head can adjust the stroke and speed, equipped with automatic glue cleaning device 5. Inking system: sealed oil cup inking system is adopted to save ink, clean and environmentally friendly 6. Drying system: equipped with hot air drying system, instant drying of printed patterns 7. Component guarantee: precision pneumatic components and solenoid valves are used

Features of this machine: 1. Control mode: PLC plus touch screen control, flexible setting of function parameters, convenient to debug and manage 2. Loading and unloading system: automatic lifting loading and unloading system, fast and accurate,  improving automation 3. Conveying workbench: tank belt conveying workbench, stable operation and precise positioning 4. Capping system: elastic rubber roller capping system, no damage to the surface of the cap 5. Inking and induction: can select sealed oil cup or open ink tray for inking, equipped with automatic glue cleaning device 6. Drying and unloading: independent heating system is used to dry the printed pattern 7. Component configuration: original imported precision pneumatic components and solenoid valves are used

Features of this machine: 1. Adopting imported precision servo combined with linear guide rail transmission, low noise, smooth operation.2. PLC controls various actions, making performance more stable, operation simpler, and maintenance simpler.3. Printing speed is fast, and no matter how complex the pattern is, it can transfer 5 products per minute.5. Suitable for products with smooth or uneven surfaces, with a wider range of applications than screen printing.6. The consumption cost of ceramic production (including pigments and oils) is much lower than that of screen printing and hand-painted colors. 7. Suitable for a wide printing area, ranging from 50mm to 400mm.

Features of this machine: 1. Control method: PLC plus touch screen control, flexible setting of function parameters, convenient to debug and manage 2. Inking method: sealed oil cup inking, clean scraping, environmentally friendly and ink-saving 3. Ink base adjustment: multi-function X, Y and taper adjustment of ink base to make printing positioning accurate 4. Print head control: independent control of print head, front and back, up and down stroke and speed adjustment 5. Printing station control: servo control shuttle module and rotary table to achieve multi-color printing of products 6. Shock absorption and performance: special shock absorption device, the machine operates very smoothly 7. Component guarantee: precision pneumatic components and solenoid valves are used

Features of this machine: 1. Control system: Adopts 1 main control touch screen and 6 control sub-screens, flexible setting of function parameters 2. Print head: Each print head is independently controlled, the up and down stroke and speed of the rubber head adjusted 3. Oil cup control: Adopts an independently controlled pop-up oil cup 4. Hot air control: Adopts an independently controlled hot air device, which can be adjusted arbitrarily according to needs 5. Workbench features: Adopts a multi-station workbench with a turntable divider, stable operation 6. Safety protection: Add a safety protection door to prevent pinching of hands and ensure safe operation 7. Component protection: Adopts precision pneumatic components and solenoid valves

Features of this machine: 1. Control method: PLC plus touch screen control, flexible setting of function parameters, convenient to debug and manage 2. Inking and printing head: combined with multiple printing head groups, to achieve one-out-multiple printing mode 3. Workbench characteristics: multi-station workbench with turntable divide, accurate positioning 4. Paste head adjustment: independent front and back, up and down stroke and speed adjustment of the glue head 5. Feeding method: automatic feeding by manipulator, reducing manpower, efficient and fast 6. Optional configuration: safety protection cover, hot air device, glue head cleaning device can be installed 7. Component guarantee: precision pneumatic components and solenoid valves are used
