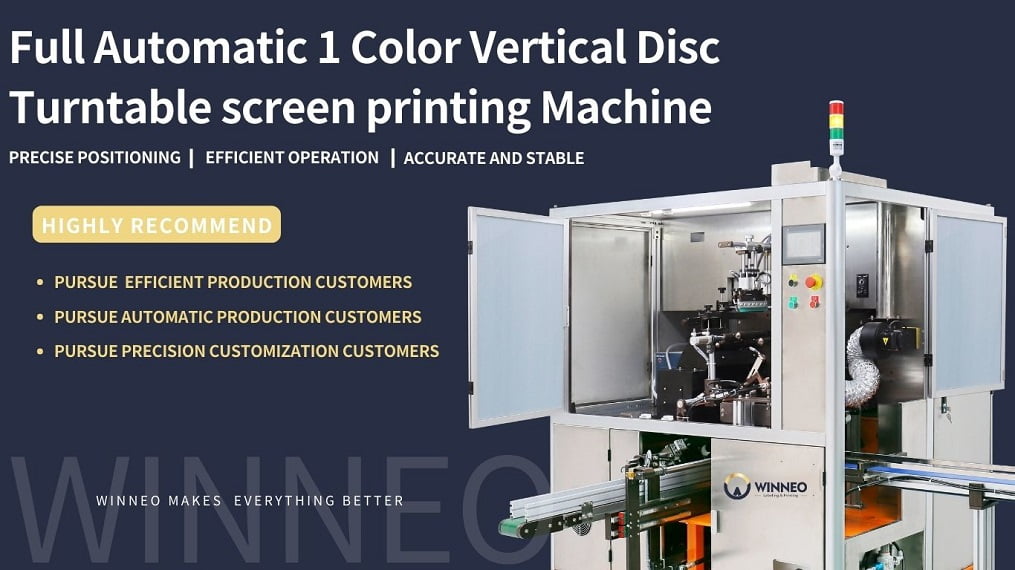

WS-175 Full Automatic 1 Color Vertical Disc Turntable Screen Printing Machine
Features of this machine:
Operation control: using intelligent human-machine interface and PLC programmable controller and accurate color registration

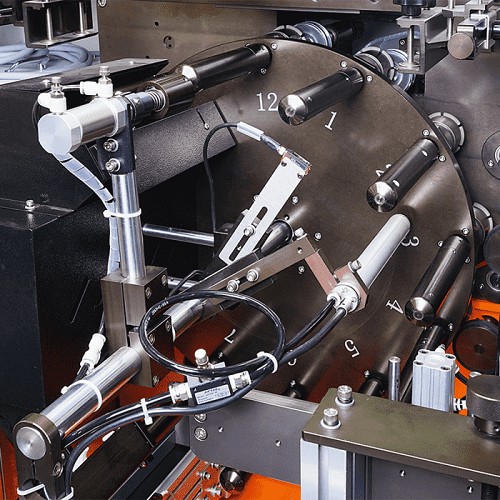

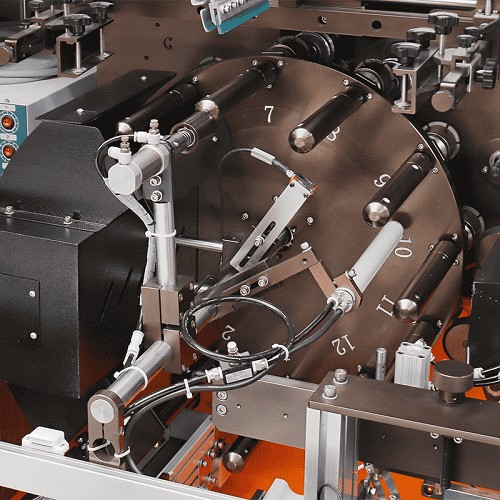

Transmission system: select European brand transmission equipment and high-speed precision gap divider

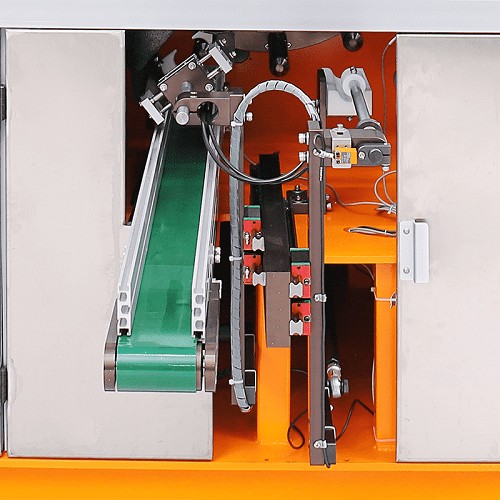

Loading and unloading device: equipped with fully automatic loading system and unloading manipulator

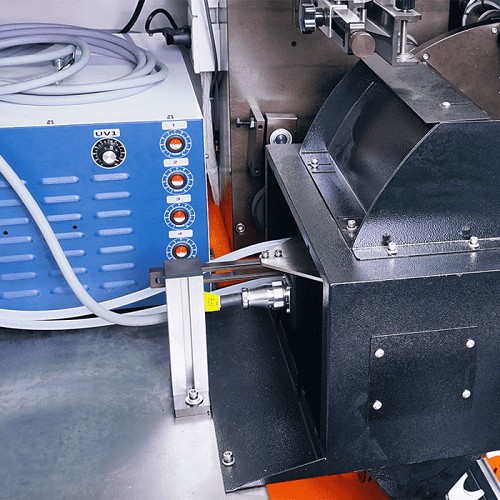

Curing method: ink curing can choose electronic ultraviolet curing or infrared drying
Detection function: with ion wind dust removal, low air pressure alarm, waste / wrong material alarm and other functions
Optional configuration: Customizable functions can be added according to customer needs
Equipped with a fully automatic loading and unloading system, the Vertical Disc Turntable Screen Printing Machine ensures smooth, continuous, and stable printing while preventing substrate scratching. The system also includes an energy-efficient curing method with options for electronic UV curing or infrared drying. Additional features such as ion wind dust removal, automatic alarms for low air pressure and waste materials, and optional configurations like a servo positioning system and automatic capping device further enhance its functionality, providing a comprehensive solution for precise and reliable screen printing.
Technical Parameters
| Model | WS-175 |
| Printing Product Diameter | φ10mm~75mm |
| Printing Product Length | L20mm~230mm |
| Max. Printing Speed | 4800Pcs/hr |
| UV Lamp Power | 2.4kW/3.2kW |
| Weight | 1400kg |
| Machine Dimensions | 4250X1700X1900mm |
| Total Power | 3.8kW/4.6kW |
| Air Pressure | 6~8bar |
| Power Supply | 380V 3Phase 50Hz 4.5kW |
Application
The Full Automatic 1 Color Screen Printing Machine is specially designed for high-speed printing of round products, suitable for a variety of medical supplies and some daily necessities, some products can be multi-color and accurate color printing.
• Perfect for labeling food and drink packaging
• Boosts product visibility and strengthens brand identity
• Perfect for labeling personal care items
• Elevates the visual appeal of daily product packaging
• Ideal for labeling cosmetic tubes and bottles
• Simple operation, accurate color registration
Terms of Service
1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided
FAQ
1. How to quickly purchase the right machine from us?
① Send the product picture you want to print, which will help us better determine the model
② Fill in the size of your product (length * width * height); if it is a bottle: diameter + height
③ Send the pattern to be printed
④ The specific size of the pattern (length * width) or range (minimum pattern size and maximum pattern size)
⑤ The printing speed you require
⑥ Are there other products that need to be printed
⑦ Printing position
2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods
3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail
4. How can I get more information?
You can contact us for more detailed information, and we will give you the most satisfactory answer.
Features of this machine: 1. Wide range of applications: The 5-color model is suitable for printing hard hollow circular tubes or solid cylindrical products, while the 6-color model is suitable for multi-color overprinting of various shapes of products with and without positioning points. 2. High precision and easy operation: The main accessories are imported and of good quality. The whole machine is servo controlled, with good printing effect and easy operation. 3 Multifunctional: Equipped with no printing without product device, servo controlled firing device, CCD visual positioning system, UV system, etc.
Details
Features of this machine: 1. Wide range of applications: Suitable for printing all kinds of cosmetics, utensils, stationery, cups, gifts, wine bottles and other containers. 2. Strong compatibility: Can print on products with different shapes, such as round, oval, cone, flat, etc. 3. Fast speed with simple operation: The microcomputer board controls various functions and actions, with fast calculation speed, and it is easy to operate through buttons. 4. Humanized design: The machine can be adjusted to meet the printing requirements of different products, such as printing stroke, speed, workbench, mesh frame, etc.
Details
Features of this machine: 1. Wide range of applications: Suitable for printing on flat products such as PCB boards, silicone, textiles, plastic buttons, PET, IC boards, nameplates, membrane switch circuits, mobile phone lenses, glass, LCD panels, etc. 2. Simple operation: Microcomputer control with |C panel (pneumatic) or touch screen (electric) to compile action programs, durable and easy to maintain. 3. Accurate color registration: High-precision fine-tuning workbench with self-locking device to ensure accurate multi-color registration.
Details
Features of this machine: 1. Wide range of applications: Suitable for pattern printing of large plastic buckets, water storage tanks, and other products made of materials such as plastic and metal. 2. Humanized design: The machine can be adjusted to meet the printing requirements of different products, such as printing stroke, speed, workbench, mesh frame, etc. 3. Stable and simple operation: Adopting PLC and touch screen control, flexible setting of functional parameters, easy for operators to debug and manage.
Details
Features of this machine: Intelligent control: using intelligent human-machine interface and PLC programmable controller for accurate color registration High efficiency: with synchronous automatic feeding, automatic lifting and printing, and ultraviolet curing functions Excellent quality: mechanical synchronous design, imported electrical components, control system Customizable automatic combined production line: CCD visual inspection, fully automatic hot stamping and labeling etc. Powerful functions: with round bottle pre-alignment function, can print on both sides of flat bottles at the same time.
Details
Features of this machine: Operation control: using intelligent human-machine interface and PLC programmable controller and accurate color registration Transmission system: select European brand transmission equipment and high-speed precision gap divider Loading and unloading device: equipped with fully automatic loading system and unloading manipulator Curing method: ink curing can choose electronic ultraviolet curing or infrared drying Detection function: with ion wind dust removal, low air pressure alarm, waste / wrong material alarm and other functions Optional configuration: Customizable functions can be added according to customer needs
Details
Features of this machine: Operation control: using intelligent human-machine interface and PLC programmable controller and accurate color registration Transmission system: select European brand transmission equipment and high-speed precision gap divider Loading and unloading device: equipped with fully automatic loading system and unloading manipulator Curing method: ink curing can choose electronic ultraviolet curing or infrared drying Detection function: with ion wind dust removal, low air pressure alarm, waste / wrong material alarm and other functions Optional configuration: Customizable functions can be added according to customer needs
Details
Features of this machine: Operation control: using intelligent human-machine interface and PLC programmable controller and accurate color registration Transmission system: select European brand transmission equipment and high-speed precision gap divider Loading and unloading device: equipped with fully automatic loading system and unloading manipulator Curing method: ink curing can choose electronic ultraviolet curing or infrared drying Detection function: with ion wind dust removal, low air pressure alarm, waste / wrong material alarm and other functions Optional configuration: Customizable functions can be added according to customer needs
Details
