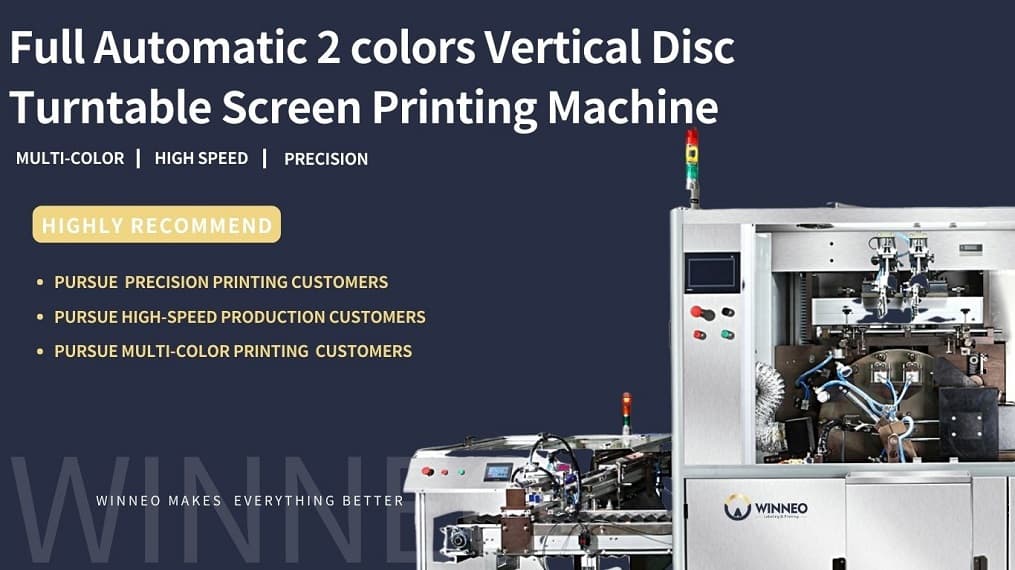

WS-230 Full Automatic 2 Colors Vertical Disc Turntable Screen Printing Machine
Features of this machine:
Operation control: using intelligent human-machine interface and PLC programmable controller and accurate color registration
Transmission system: select European brand transmission equipment and high-speed precision gap divider
Loading and unloading device: equipped with fully automatic loading system and unloading manipulator
Curing method: ink curing can choose electronic ultraviolet curing or infrared drying
Detection function: with ion wind dust removal, low air pressure alarm, waste / wrong material alarm and other functions
Optional configuration: Customizable functions can be added according to customer needs
The 2 Colors Vertical Disc Turntable Screen Printing Machine is specially designed for high-speed printing of round products, suitable for a variety of medical supplies and some daily necessities, some products can be multi-color and accurate color printing.
Technical Parameters
| Model | WS-230 |
| Printing Product Diameter | φ5mm~35mm |
| Printing Product Length | L20mm~230mm |
| Max. Printing Speed | 4200Pcs/hr |
| UV Lamp Power | 3.5kW |
| Weight | 3000kg |
| Machine Dimensions | 5000X2900X1900mm |
| Total Power | 3.8kW/4.6kW |
| Air Pressure | 6~8bar |
| Power Supply | 380V 3Phase 50Hz 4.5kW |
Application
Designed for high-speed printing of round products, WS-230 Full Automatic 2 Colors Turntable Screen Printing Machine is suitable for medical supplies such as centrifuge tubes, cryopreservation tubes, shake tubes, syringes, and hoses, bottle caps, cream jars, etc. Some products can achieve multi-color printing and accurate color registration;
• Perfect for food and beverage label printing
• World-class PLC & touchscreen for easy, simple operation.
• Perfect for labeling daily products
• Fast printing speed, accurate color registration
• Ideal for cosmetic products label printing
• Mechanically driven bottle transport with high stability
Terms of Service
1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided
FAQ
1. How to quickly purchase the right machine from us?
① Send the product picture you want to print, which will help us better determine the model
② Fill in the size of your product (length * width * height); if it is a bottle: diameter + height
③ Send the pattern to be printed
④ The specific size of the pattern (length * width) or range (minimum pattern size and maximum pattern size)
⑤ The printing speed you require
⑥ Are there other products that need to be printed
⑦ Printing position
2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods
3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail
4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
