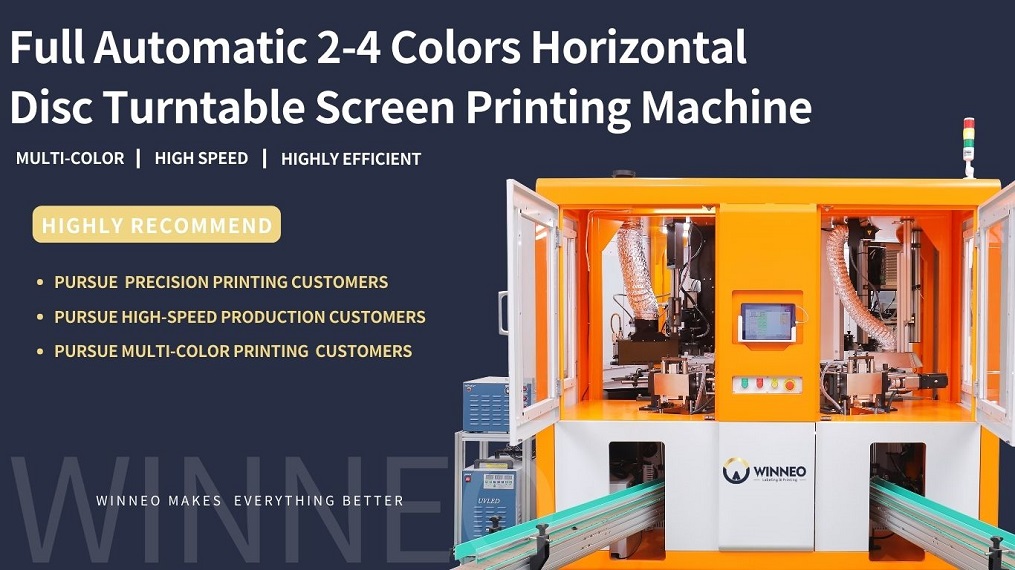

WS-AUTO/R208 Full Automatic 2-4 Color Horizontal Disc Turntable Screen Printing Machine
Features of this machine:
Operation control: using intelligent human-machine interface and PLC programmable controller and accurate color registration
Transmission system: select European brand transmission equipment and high-speed precision gap divider
Loading and unloading device: equipped with fully automatic loading system and unloading manipulator
Curing method: ink curing can choose electronic ultraviolet curing or infrared drying
Detection function: with ion wind dust removal, low air pressure alarm, waste / wrong material alarm and other functions
Optional configuration: Customizable functions can be added according to customer needs
Specially designed for printing various round and flat bottles with unique shapes.
Equipped with a German Beijuf PLC system, an Apple iPad touchscreen interface, a Huichuan modular servo and motion controller, and a Spanish original GOIZPER servo rotating table, this machine ensures precise and reliable performance.

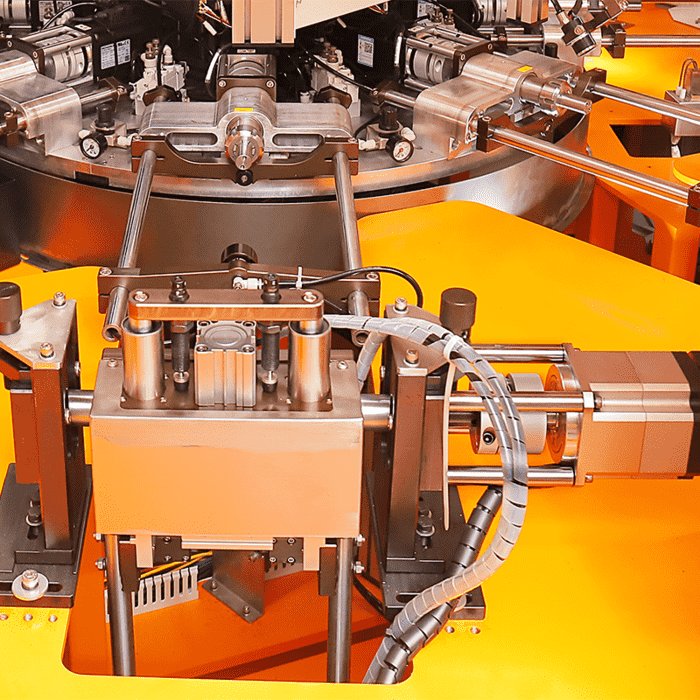

Driven by Huichuan servo motors, with servo-driven web tension control, the 2-4 Color Screen Printing machine offers automatic servo lifting and switching capabilities for different printing methods (screen printing, hot stamping, labeling).

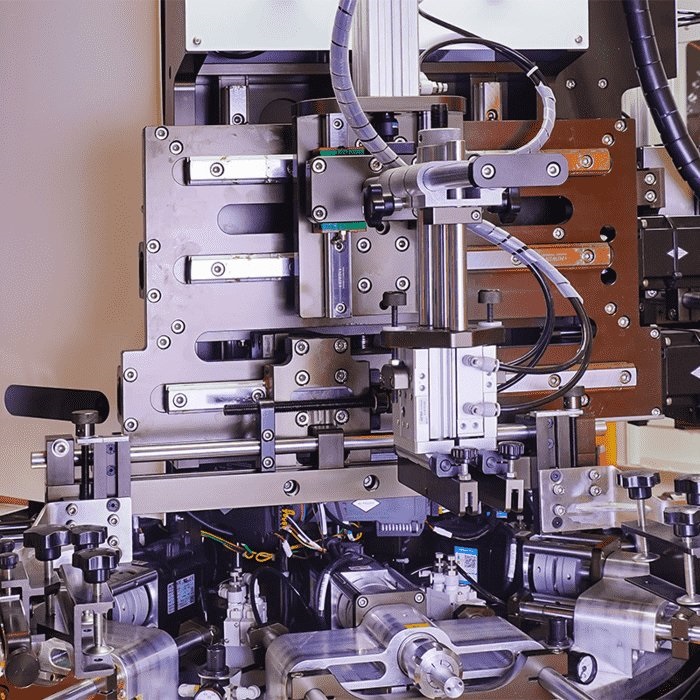

Featuring Japanese THK guides and ball screws, as well as high-precision Taiwanese DEX decimators, our machine utilizes a full servo control system that eliminates the need for gears when printing different bottle shapes.
Technical Parameters
| Model | WS-AUTO/R208 | WS-AUTO/R312 | WS-AUTO/R412 |
| Function Type | 2-color 8-station | 1 hot stamping 2 printing 12-station | 4-color 12-station |
| Circular Diameter | φ15mm~100mm | φ30mm~110mm | φ30mm~120mm |
| Elliptical Width | 25mm~100mm | 30mm~100mm | N/A |
| Bottle Height | 50~300mm | 30~200mm | 50~310mm |
| Printing Speed | 1500~3000Pcs/hr | 1500~3000Pcs/hr | 1500~3000Pcs/hr |
| Weight | 3500kg | 6000kg | 6200kg |
| Machine Dimensions | 2735x2450x2312mm | 3415x3220x2315mm | 2735x2450x2312mm |
| Total Power | 25kW | 35kW | 35kW |
| Air Pressure | N/A | 0.6~0.7MPa | N/A |
| Power Supply | N/A | 380V AC | N/A |
Application
The 2-4 Color Horizontal Disc Turntable Screen Printing Machine is suitable for pattern printing of large plastic buckets, water, storage tanks, and other products made of materials such as plastic and metal.
• Ideal for food & beverage packaging printing
• PLC & touch screen: easy for operators to debug and manage
• Versatile printing for daily products
• Customizable printing stroke, speed, and more
• Suited for labeling cosmetic products
• Servo print head with screen/foil/label switching
Terms of Service
1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided
FAQ
1. How to quickly purchase the right machine from us?
① Send the product picture you want to print, which will help us better determine the model
② Fill in the size of your product (length * width * height); if it is a bottle: diameter + height
③ Send the pattern to be printed
④ The specific size of the pattern (length * width) or range (minimum pattern size and maximum pattern size)
⑤ The printing speed you require
⑥ Are there other products that need to be printed
⑦ Printing position
2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods
3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail
4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
