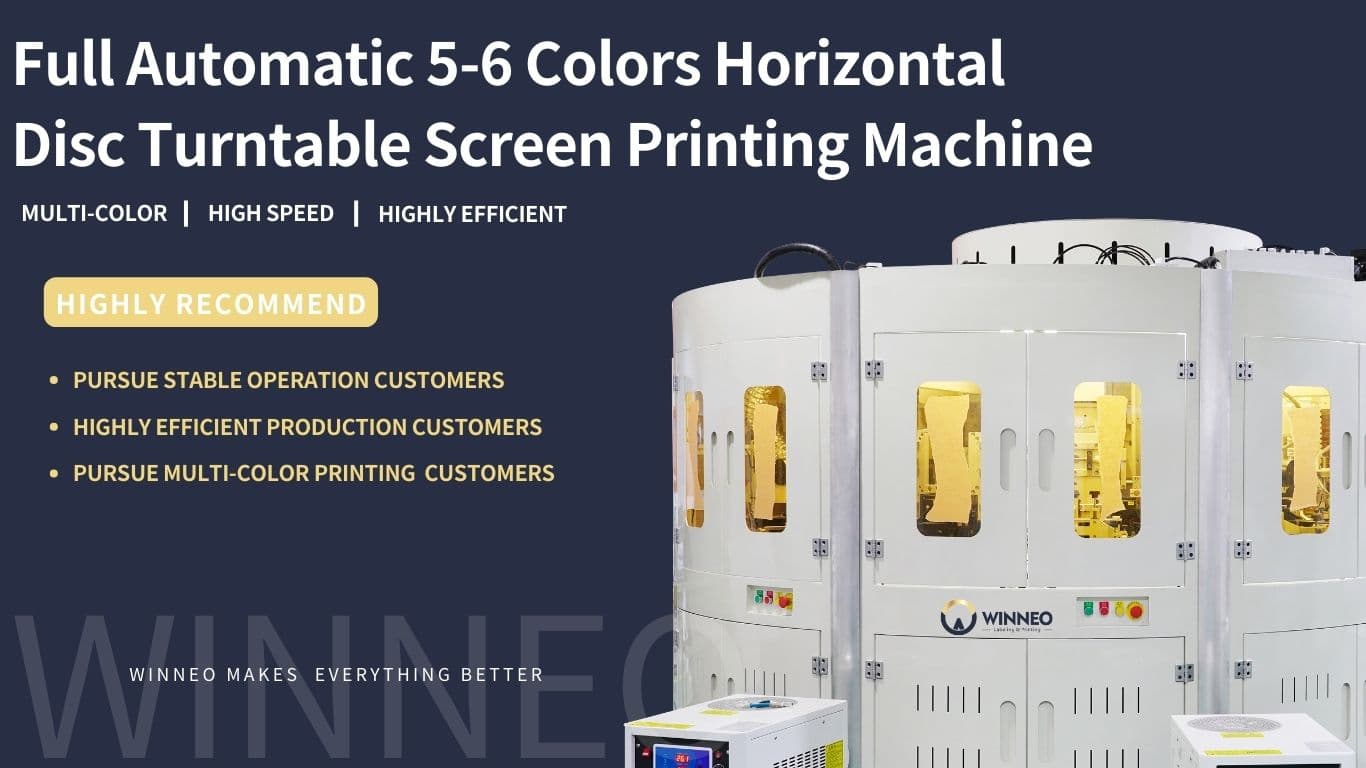

WS-AUTO/R512 Full Automatic 5-6 Color Horizontal Disc Turntable Screen Printing Machine
Features of this machine:
1. Wide range of applications: The 5-color model is suitable for printing hard hollow circular tubes or solid cylindrical products, while the 6-color model is suitable for multi-color overprinting of various shapes of products with and without positioning points.
2. High precision and easy operation: The main accessories are imported and of good quality. The whole machine is servo controlled, with good printing effect and easy operation.
3 Multifunctional: Equipped with no printing without product device, servo controlled firing device, CCD visual positioning system, UV system, etc.
Item No :
WS-AUTO/R512Operation :
AutomaticContainer Shape :
Various ShapesPower Supply :
380V AC 50HZPayment :
TT, PayPal, Visa

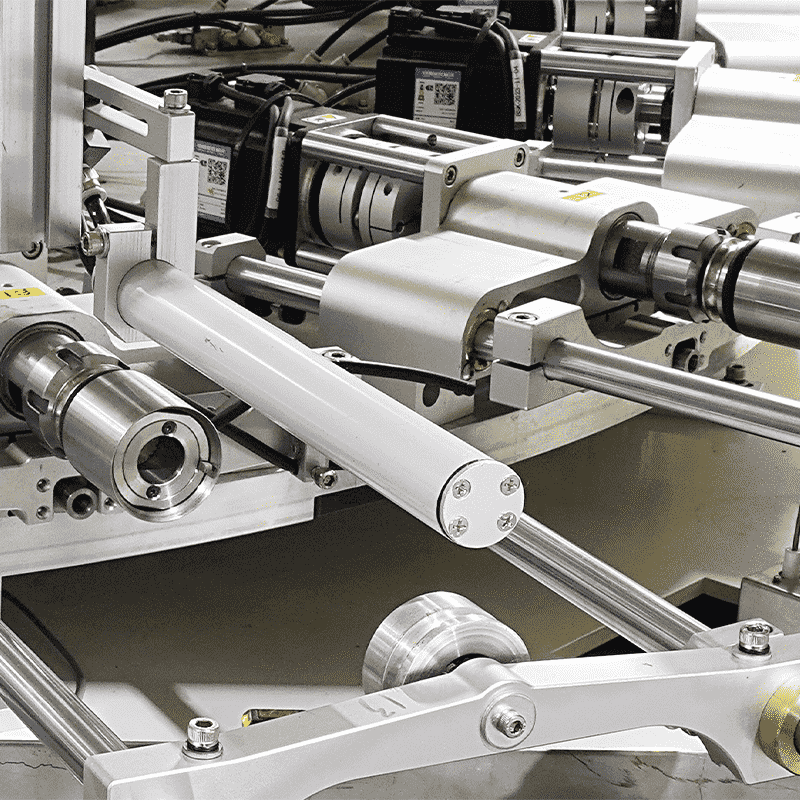

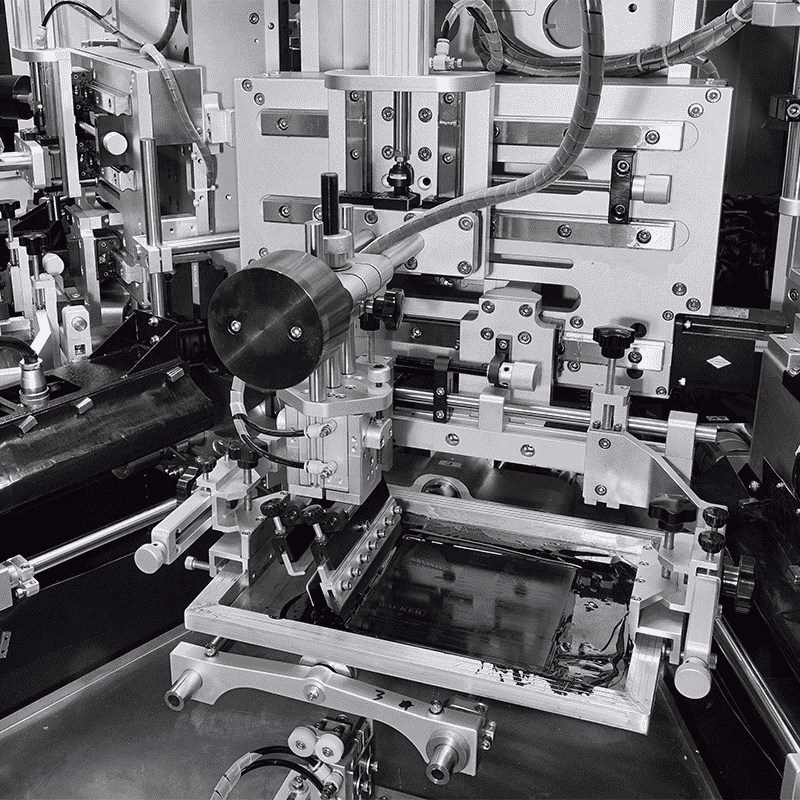

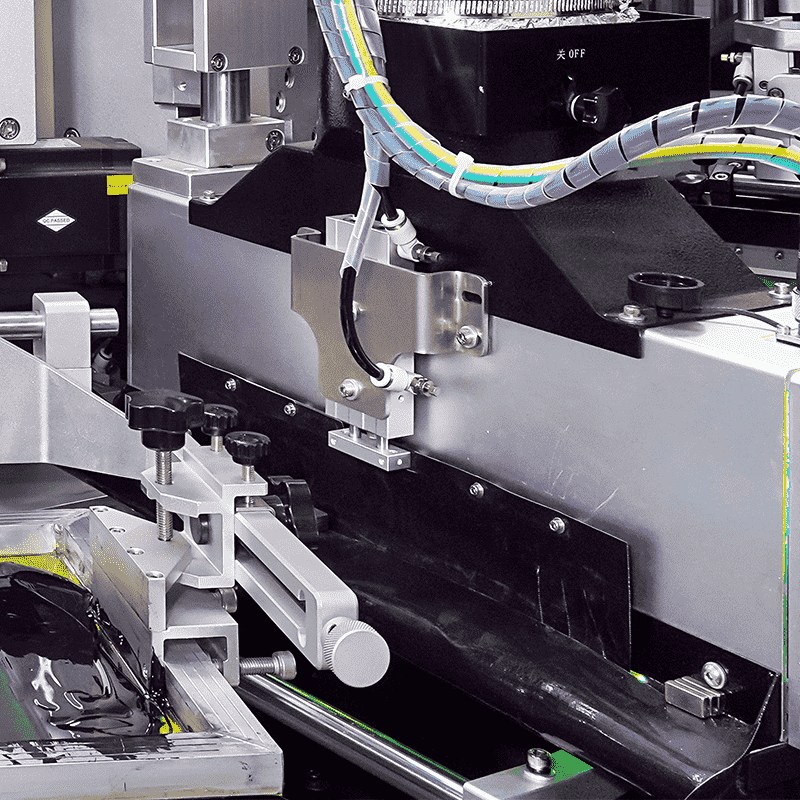

This advanced screen printing machine is available in 5-color and 6-color models, designed for different product requirements. The 5-color model is suitable for printing hard hollow round tubes or solid cylindrical products, while the 6-color model is designed for multi-color overprinting of products of various shapes with or without positioning grooves. The core of the equipment adopts German Beckhoff PLC, Apple iPad touch screen and Inovance modular servo and motion controller to ensure high precision and stability. The mechanical part uses Spanish original GOIZPER servo turntable, Japanese THK guide rail and ball screw, and high-precision Taiwan DEX divider, with full servo control system, it can realize the printing of different shapes of bottles without gears. All tube positions are driven by Inovance servo, screen servo drive is used for operation, and it has automatic lifting servo print head, which supports screen printing, hot stamping and labeling switching. To improve printing quality, the equipment is also equipped with ion dust removal, servo burning device, CCD visual positioning system (bottle body or bottle mouth positioning), and automatic detection functions such as no printing, low air pressure, feeding/unloading, waste/wrong material alarm, etc. For pneumatic components, Japanese SMC solenoid valves and German FESTO cylinders are used. The fully automatic feeding system and unloading manipulator device ensure a continuous and stable printing process. In addition, the equipment uses an LED UV system to ensure that the ink meets the 3M tape test standards.
Technical Parameters
| Model | WS-AUTO/R512 | WS-AUTO/R612 |
| Printing Product Diameter | φ10~55mm | φ20mm~100mm |
| Printing Product Length | 40~250mm | 50mm~330mm |
| Pipe Wall Thickness | ≥1mm | — |
| Printing Speed | ≤3600Pcs/hr | 1500~3000Pcs/hr |
| Weight | 6000kg | 7500kg |
| Machine Dimensions | 5351x2982x2342mm | 5876x3980x2362mm |
| Total Power | 40kW | 40kW |
| Air Pressure | 0.5~0.7MPa 20m²/H | 0.6~0.7MPa |
| Power Supply | 380V AC 50HZ | 380V AC |
Application
Labeling applicator machine is suitable for labeling products such as: Reagent bottles and small round tubes in the pharmaceutical industry, Watercolor pens in the toy industry, Glue and pigments in the daily chemical industry, Lipsticks and lip balms in the beauty industry, etc.
• Suitable for paper cups, food packaging bags, etc
• Enhances the packaging's visual appeal
• Ideal for labeling personal care bottles with precision
• Ensures high-quality printing for daily product packaging
• Suitable for labeling delicate cosmetic tubes
• Meets high standards for quality packaging
Terms of Service
1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided
FAQ
1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.
2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods
3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail
4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
