Features of this machine:
1. Wide range of applications: Suitable for pattern printing of large plastic buckets, water storage tanks, and other products made of materials such as plastic and metal.
2. Humanized design: The machine can be adjusted to meet the printing requirements of different products, such as printing stroke, speed, workbench, mesh frame, etc.
3. Stable and simple operation: Adopting PLC and touch screen control, flexible setting of functional parameters, easy for operators to debug and manage.
Item No :
WS-BARREL-1000Operation :
AutomaticContainer Shape :
FlatPower Supply :
220V 50Hz 3P 3.75kVVPayment :
TT, PayPal, Visa

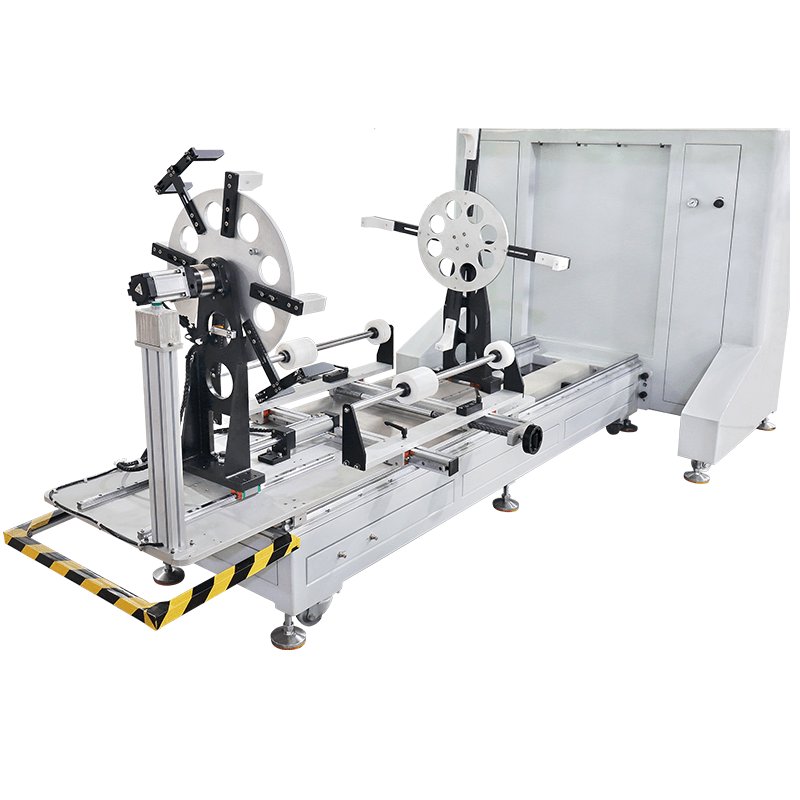

WS-BARREL-1000 Large Drum Screen Printing Machine is a professional equipment designed for pattern printing of plastic and metal products such as large plastic barrels and water storage tanks. It overcomes the shortcomings of traditional equipment in product fixture control, workbench sliding and control methods, and adopts advanced servo control, modular sliding and PLC plus touch screen control to achieve high precision, high efficiency and convenient operation. The machine is widely used in industries that require high-quality pattern printing on the surface of large-sized cylindrical or barrel-shaped products.

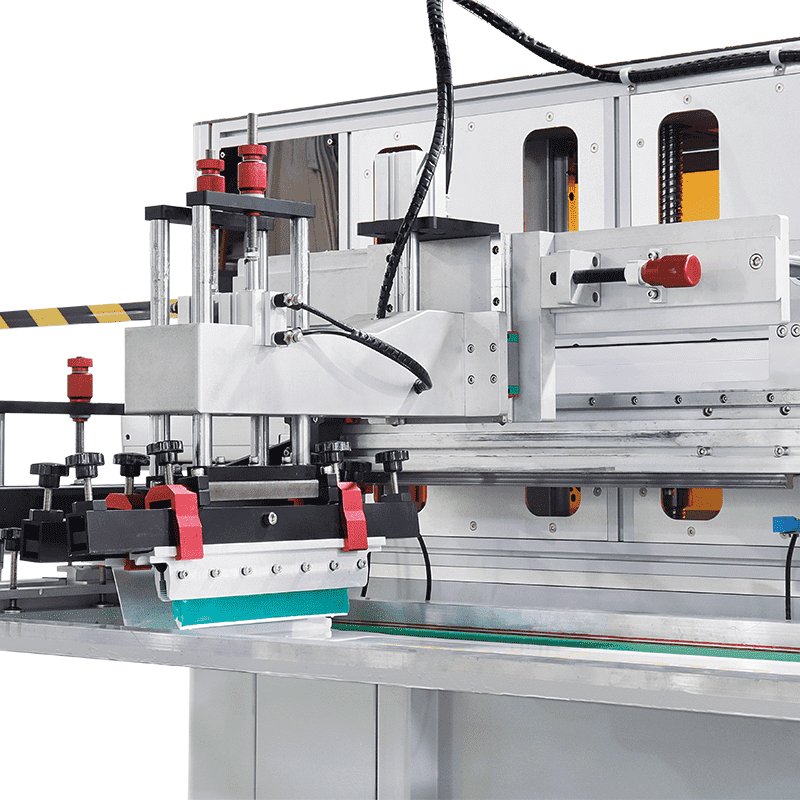

The core advantage of WS-BARREL-1000 lies in its advanced control and sliding system. Servo control ensures the precise positioning of product fixtures, avoiding the problems of inaccurate positioning and inconvenient operation of traditional equipment. The modular sliding workbench achieves smooth and fast forward and backward sliding, significantly improving printing accuracy and stability. The PLC plus touch screen control system is not only powerful but also easy to operate. Users can flexibly set various functional parameters for easy debugging and management. In addition, the machine also has a humanized design and can be adjusted according to the printing needs of different products, such as printing stroke, speed, workbench and screen frame, etc., ensuring the versatility and adaptability of the equipment.
Technical Parameters
| Model | WS-BARREL-1000 |
| Printing Product Diameter | 700~1000mm |
| Frame Up And Down Travel(Servo) | 0~200mm |
| Frame Left And Right Travel(Module) | 0~1000mm |
| Product Front And Rear Stroke(Cylinder) | 0~1000mm |
| Printing Speed(Printing On Both Sides) | 30~45Pcs/hr |
| Printing Area | 500x1090mm |
| Weight | 1100kg |
| Machine Dimensions | 2500x3300x2300mm |
| Air Pressure | 5~8Bar |
| Power Supply | 220V 50Hz 3P 3.75kW |
Application
Large barrel screen printing machine is suitable for pattern printing of large plastic barrels, water storage barrels and other products made of different materials such as plastic and metal
• Suit for food and beverage packaging
• Ensure clear text and vibrant images
• Suitable for medical packaging and pharmaceutical containers
• Ensures precise, high-quality printing for clear labeling
Terms of Service
1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided
FAQ
1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.
2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods
3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail
4. How can I get more information?
You can contact us for more detailed information, and we will give you the most satisfactory answer.
