WS-F/2030 Standard High Precision Flat Screen Printing Machine
Features of this machine:
1. Wide range of applications: Suitable for printing on flat products such as PCB boards, silicone, textiles, plastic buttons, PET, IC boards, nameplates, membrane switch circuits, mobile phone lenses, glass, LCD panels, etc.

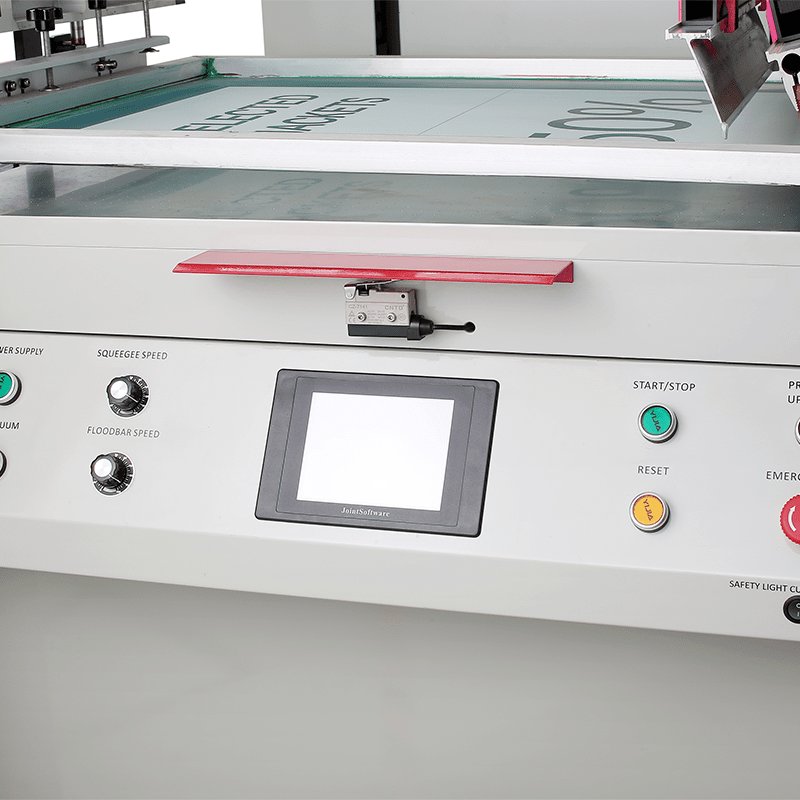

2. Simple operation: Microcomputer control with |C panel (pneumatic) or touch screen (electric) to compile action programs, durable and easy to maintain.
3. Accurate color registration: High-precision fine-tuning workbench with self-locking device to ensure accurate multi-color registration.
Item No :
WS-F/2030Operation :
AutomaticContainer Shape :
FlatPower Supply :
220V 50-60HzPayment :
TT, PayPal, Visa
WS-F/2030 Standard High Precision Flat Screen Printing Machine adopts pneumatic control and is equipped with a microcomputer IC panel, which is easy to operate and has low maintenance costs. Its T-slot workbench design is convenient for fixing printing materials of different sizes to ensure the stability and precision of the printing process.

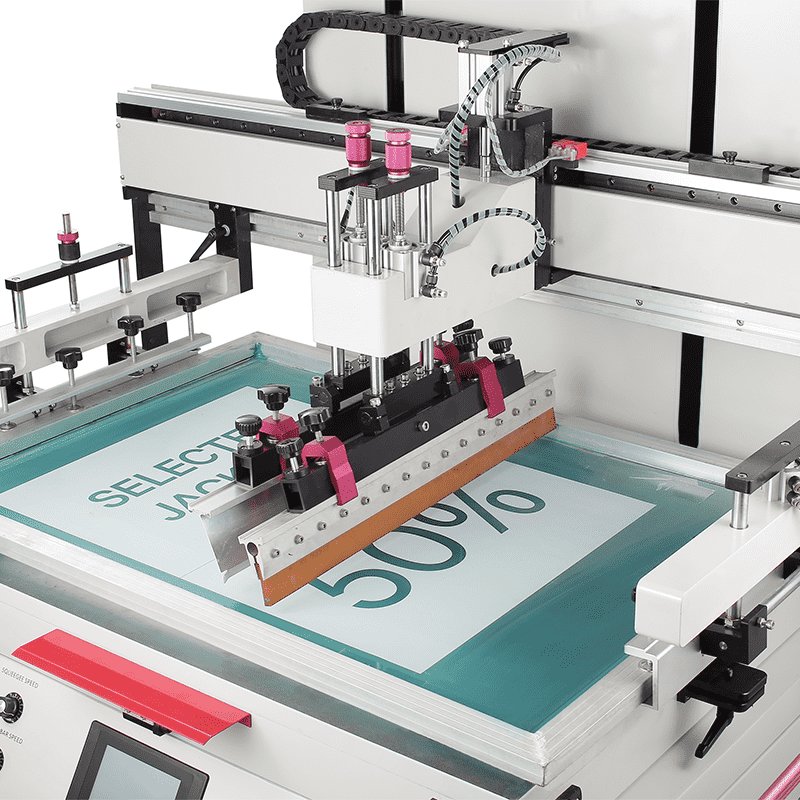

WS-F/2030 is controlled by a microcomputer IC panel, and users can easily write and store printing action programs to achieve automated printing. The printing action design of the machine supports a variety of printing cycle modes, and users can freely choose according to different printing processes to optimize printing effects and efficiency. The guide rail sliding structure ensures the smoothness and accuracy of the printing head movement, the scraper constant pressure device ensures the uniformity and stability of the printing pressure, and the angle of the scraper/ink return knife can also be adjusted to meet different printing needs.

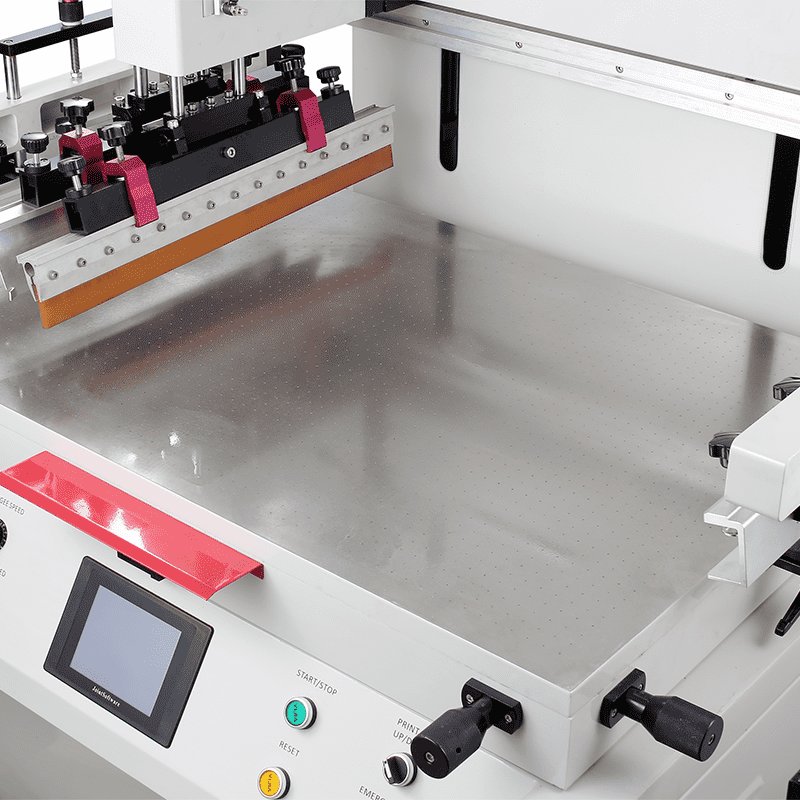

The machine is equipped with a high-precision fine-tuning workbench with a self-locking device to ensure accurate alignment of multi-color overprinting. The printing head can be raised and lowered vertically, which is convenient for taking and cleaning the screen. The screen frame position can be adjusted front and back, left and right, and horizontally, further improving printing accuracy and flexibility. In addition, the WS-F/2030 workbench is also equipped with an emergency stop device to effectively ensure the safety of the operator.
Technical Parameters
| Model | WS-F/2030 | WS-F/3050 | WS-F/4060 | WS-F/5070 | WS-F/6090 |
| Drive mode of up and down | Pneumat+ic | Electric | Electric | Electric | Electric |
| Drive mode of left and right | Pneumat+ic | Electric | Electric | Electric | Electric |
| T-slot workbench | ✓ | ✓ | ✓ | ✓ | ✓ |
| Air suction workbench | ✓ | ✓ | ✓ | ✓ | ✓ |
| Support customized servo models | ✓ | ✓ | ✓ | ✓ | ✓ |
| Infrared device can be installed | - | ✓ | ✓ | ✓ | ✓ |
| Left and right travel (mm) | 300 | 500 | 600 | 700 | 900 |
| Up and down stroke (mm) | 125 | 150 | 150 | 150 | 150 |
| Maximum mesh frame size (mm) | 300X500 | 500X800 | 600X850 | 700X900 | 800X950 |
| Workbench area (mm) | 240X400 | 350X600 | 500X700 | 600X800 | 700X1000 |
| Maximum printing area (mm) | 200X300 | 300X500 | 400X600 | 500X700 | 600X900 |
| Maximum print height (mm) | 80 | 100 | 150 | 150 | 150 |
| Printing speed (pcs/hr) | 1200~1500 | 1000~1200 | 900~1100 | 800~1000 | 600~800 |
| Weight (kg) | 150 | 190 | 250 | 280 | 350 |
| Machine Dimensions (mm) | 650X650X1550 | 1050X750X1550 | 1320X1050X1650 | 1350X1050X1650 | 1450X1150X1700 |
| Voltage | 220V 50-60Hz 500W | 220V 50-60Hz 1000W | 220V 50-60Hz 1350W | 220V 50-60Hz 1350W | 220V 50-60Hz 2100W |
| Air Pressure (bar) | 5~7Bar | ||||
Application
The high-precision flat screen printing equipment suitable for printing on a variety of flat products such as PCB boards, silicone, textiles, plastic buttons, PET, IC boards, nameplates, membrane switch circuits, mobile phone lenses, glass and LCD panels.
• Ideal for flat printing on daily packaging
• Delivers sharp and detailed printing results
• Suitable for electronic devices and precision parts
• Ensures sharp and detailed printing results.
• Ideal for toys and gaming accessories
• Delivers high precise and quality prints
Terms of Service
1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided
FAQ
1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.
2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods
3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail
4. How can I get more information?
You can contact us for more detailed information, and we will give you the most satisfactory answer.
